Load saved jobs in seconds and make new job changes in minutes.

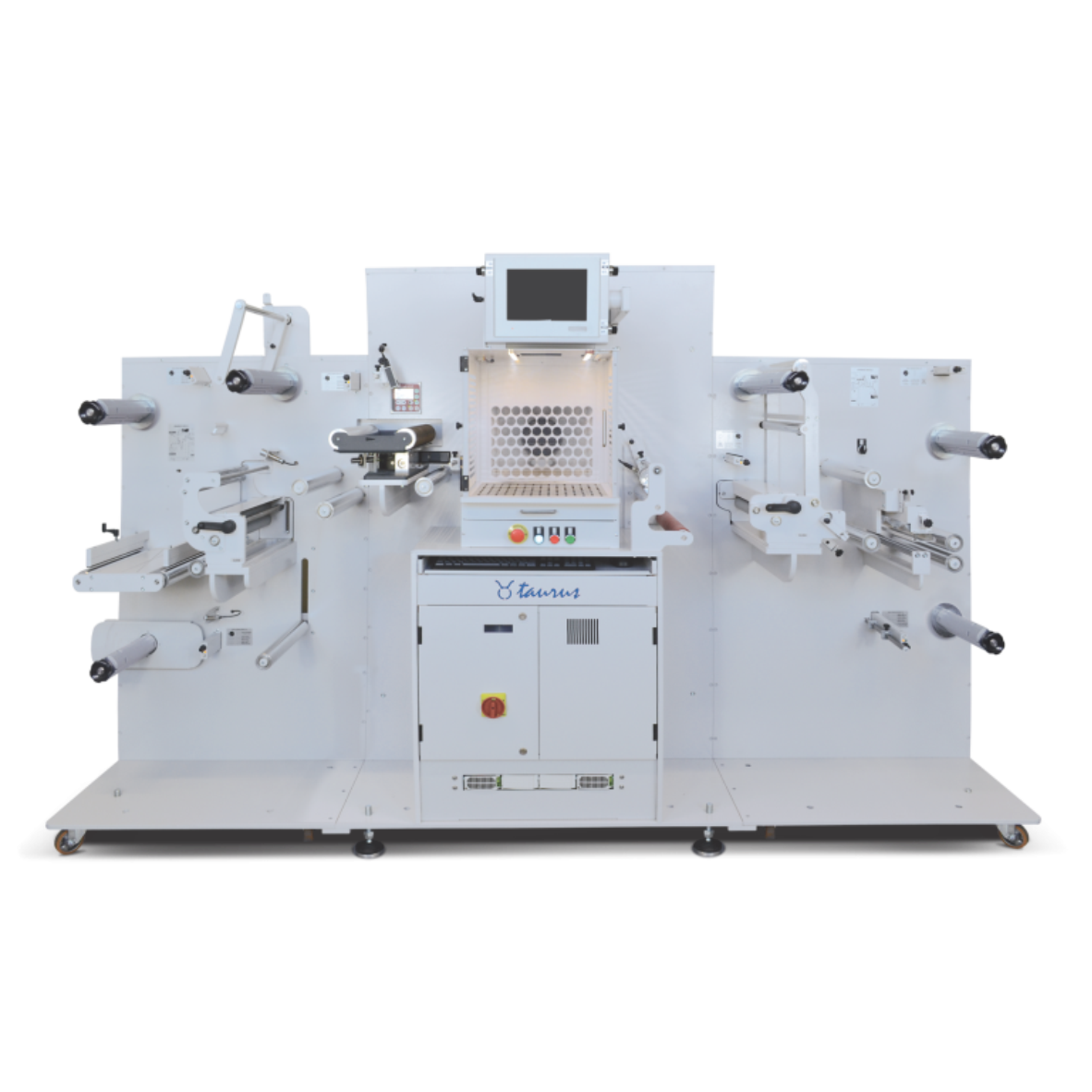

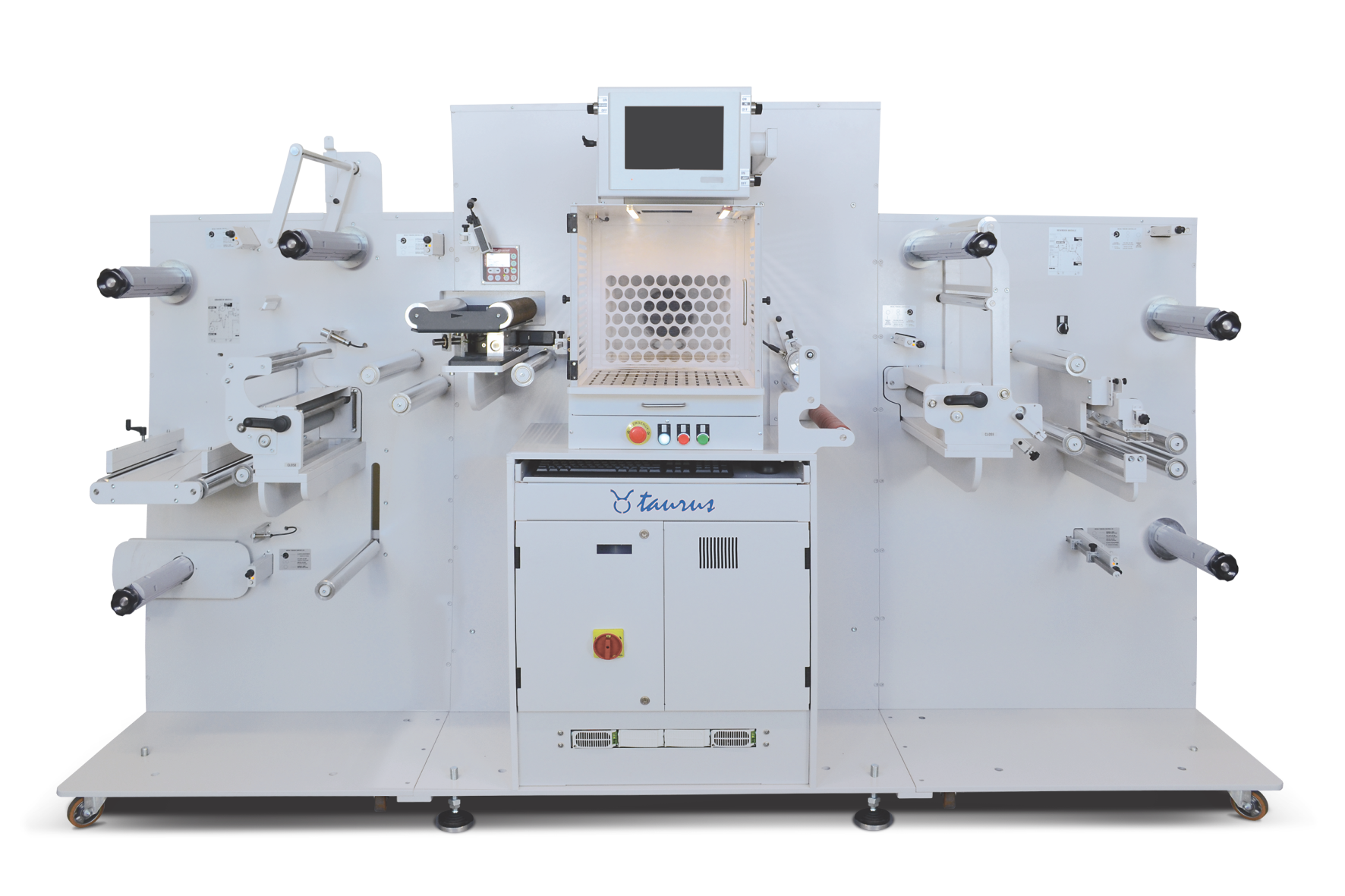

Taurus Laser Finisher
Roll-to-Roll Digital Laser Converting
Taurus Digital Laser Label Cutter
A die-free roll-to-roll finishing system powered by Galvo scanner technology and a sealed CO₂ laser source for precision kiss cutting, slitting and perforation.
Die-FreeFully digital laser workflow
3-AxisX, Y registration and Z depth control
Roll-to-RollIntegrated converting workflow
UNWINDLASER CUTSLITREWIND
Digital Laser Label Converting
01Finish Labels Without Dies, Delays or Mechanical Setup
Taurus brings laser cutting, slitting and perforation into a flexible digital roll-to-roll production workflow.
Taurus is a digital roll-to-roll converting solution powered by Galvo scanner technology and a sealed CO₂ laser source. It finishes printed jobs with exceptional edge quality, precision and speed—without mechanical die tools.
Its three-axis scanner improves X and Y registration while adding Z-axis cut-depth control. Multiple laser power levels can be used on the same label, enabling flexible designs and a combination of kiss cutting, slitting and perforation.
Precise position and depth control across the label web.
Produce only what is needed while reducing inventory and lead times.
Why Taurus
02A Faster Route to Flexible In-House Label Production
Reduce outsourcing, eliminate dies and deliver short runs with greater speed, control and profitability.
Lower Inventory Requirements
Produce labels internally and on demand instead of carrying large volumes of pre-cut stock.
Easy Full-Bleed Labels
Digital laser cutting removes the limitations associated with fixed die gaps and pre-die-cut rolls.
Durable Laminated Labels
Add durability through lamination without depending on specialised label media.
No Pre-Cut Rolls
Use continuous printed media and define the finished shape digitally.
No Die Tools
Eliminate the cost, storage, setup and lead time associated with conventional dies.
Labels on Demand
Move quickly from artwork to finished rolls for short runs and urgent lead times.
Digital Production Advantage
Less setup. Less waste. More flexibility.
The laser workflow reduces mechanical changeovers and supports faster job switching for varied shapes, quantities and run lengths.
Best Suited ToSHORT RUNS + VARIABLE DESIGNS
Advanced Laser Engineering
03Galvo Scanner Precision with Multi-Level Cut Control
Latest-generation laser technology improves registration, edge quality and flexibility across complex label designs.
Sealed CO₂ Laser Source
A sealed CO₂ laser delivers consistent, non-contact cutting performance across many materials used in the label industry.
Three-Axis Scanner
X and Y axes improve registration while Z-axis control manages cut depth and multiple power levels.
Galvo Motion System
Fast mirror-based beam positioning supports intricate paths without relying on mechanical die movement.
Multiple Laser Processes
Kiss cut, slit and perforate within one digital job while applying different power levels where required.
Cut on Fly Mode
Optimises productivity for suitable jobs by processing while the media continues moving.
Start & Stop Mode
Supports more demanding artwork by pausing the web for complex paths and greater control.
Kiss CuttingControlled surface cutting for pressure-sensitive labels
SlittingDigitally defined web separation and narrow-roll finishing
PerforationRepeatable tear lines and functional label features
Quick Running Process
04From Saved Artwork to Finished Labels in Minutes
An efficient digital setup supports small runs, short lead times and fast changes between jobs.
Import the Job
Open a saved Adobe PDF-compatible cutting file in the management software.
Set Parameters
Adjust work speed, laser output and cut levels for the selected material.
Control Tension
Independent ultrasonic tension systems stabilise the web as roll diameters change.
Laser Process
Use cut-on-fly or start-and-stop mode according to artwork complexity.
Extract Fumes
Airflow keeps the processing area clean and helps prevent material burning.
Rewind Output
Complete the job as clean finished rolls ready for the next production stage.
Stable, Efficient Production
05Intelligent Tension, Cooling and Extraction Systems
Integrated controls protect cut quality, maintain web stability and support reliable operation.
Production StabilityAutomatic web control across changing roll diameters
Ultrasonic Tension Control
Each core is managed by its own media-tension control, automatically adjusting tension regardless of roll diameter.
Fume Extraction Connection
A rear adaptor allows connection to a fume extractor for cleaner and safer laser processing.
Airflow Protection
The airflow system helps prevent materials from burning and keeps the working area clear.
Built-In Chiller
An integrated water-cooling system monitors and regulates the laser-source temperature.
Remote Assistance
Internet-connected computers can be accessed by support technicians for convenient troubleshooting and guidance.
Cutting Manager Software
06Control Speed, Laser Power and Material Efficiency
A Windows-based management interface helps operators optimise cutting time, reduce waste and improve job profitability.
The Taurus Cutting Manager is designed to make digital laser finishing approachable for operators while retaining precise production control.
Adobe PDF Compatible
Import standard PDF cutting files into a familiar Windows workflow.
Laser Output Adjustment
Fine-tune power levels to match media type, cut depth and process requirements.
Speed Optimisation
Balance output speed against artwork complexity for the best production result.
Reduced Material Waste
Digital setup and quick job changes reduce trial material and mechanical setup waste.
See Taurus in Operation
07Product Demonstration and Technical Brochure
Watch the laser-finishing workflow and download the supplied Taurus product literature.
Technical Literature
Download the Taurus Brochure
Review the digital laser workflow, technology and production benefits in the official product brochure.
PDFProduct BrochureTaurus Digital Laser Finisher
↓
ProcessRoll-to-Roll
TechnologyCO₂ Laser
WorkflowDie-Free
Bring Laser Finishing In-House
Discuss your Taurus label-finishing workflow with RUXO Labels
We can help assess your media, label shapes, cut complexity, production volume, extraction requirements and finishing goals.
01Review your applications
02Confirm media and laser requirements
03Plan your roll-to-roll workflow
