Flexible Production
Afinia L502
Dual pigment and dye ink capability for durable industrial labels and vibrant retail packaging.
Afinia
Afinia Colour Label Printing
Select the Right Afinia Printer for Your Production
Compare Afinia’s versatile colour label printers and industrial roll-to-roll presses to find the right solution for your print volume, label application, media width and production environment.
On-Demand Label Printing
Industrial Production
Roll-to-Roll Printing
3
Professional Afinia solutions
216–324.4mm
Available print widths
Flexible to Industrial
Production capability

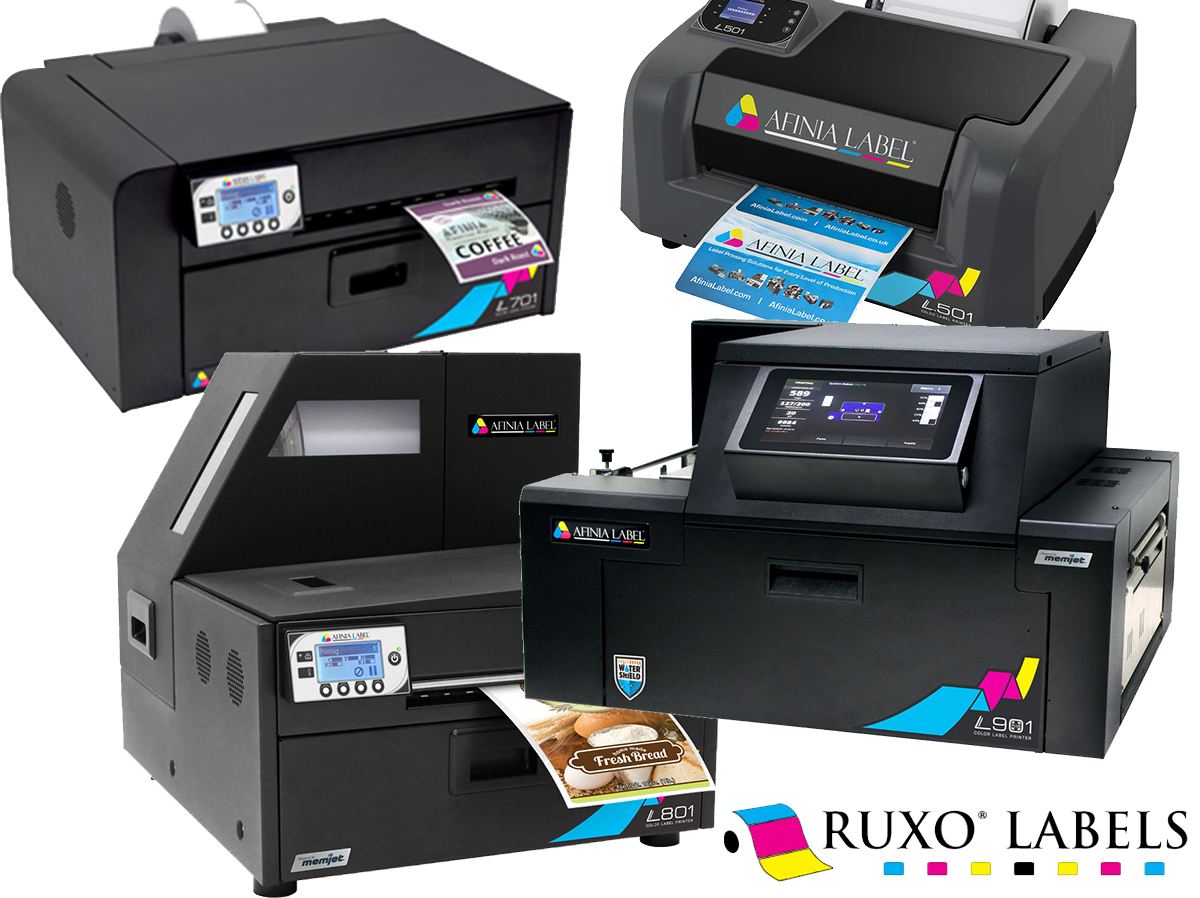

Afinia Product Range
01
Select Your Afinia Printing Solution
Choose from flexible desktop label production, high-speed industrial printing or an ultra-high-volume wide-format roll-to-roll press.
Flexible Production
Afinia L502
Durable 8.5-inch colour label printer with dual-ink capability for flexible, on-demand production.
Speed
5.2 in/sec
Resolution
4800 × 1200 dpi
Print Width
216mm
Industrial
High-Speed Production
Afinia L901
Industrial-grade 8.5-inch colour label printer with fast, inline-ready Memjet performance.
Speed
Up to 12 in/sec
Resolution
1600 × 1600 dpi
Print Width
216mm
Ultra-High-Volume
Afinia X350
Industrial 12.8-inch pigment roll-to-roll press for high-volume labels and flexible packaging.
Speed
45m/min
Resolution
1600 × 1600 dpi
Print Width
324.4mm
Flexible On-Demand Production
02

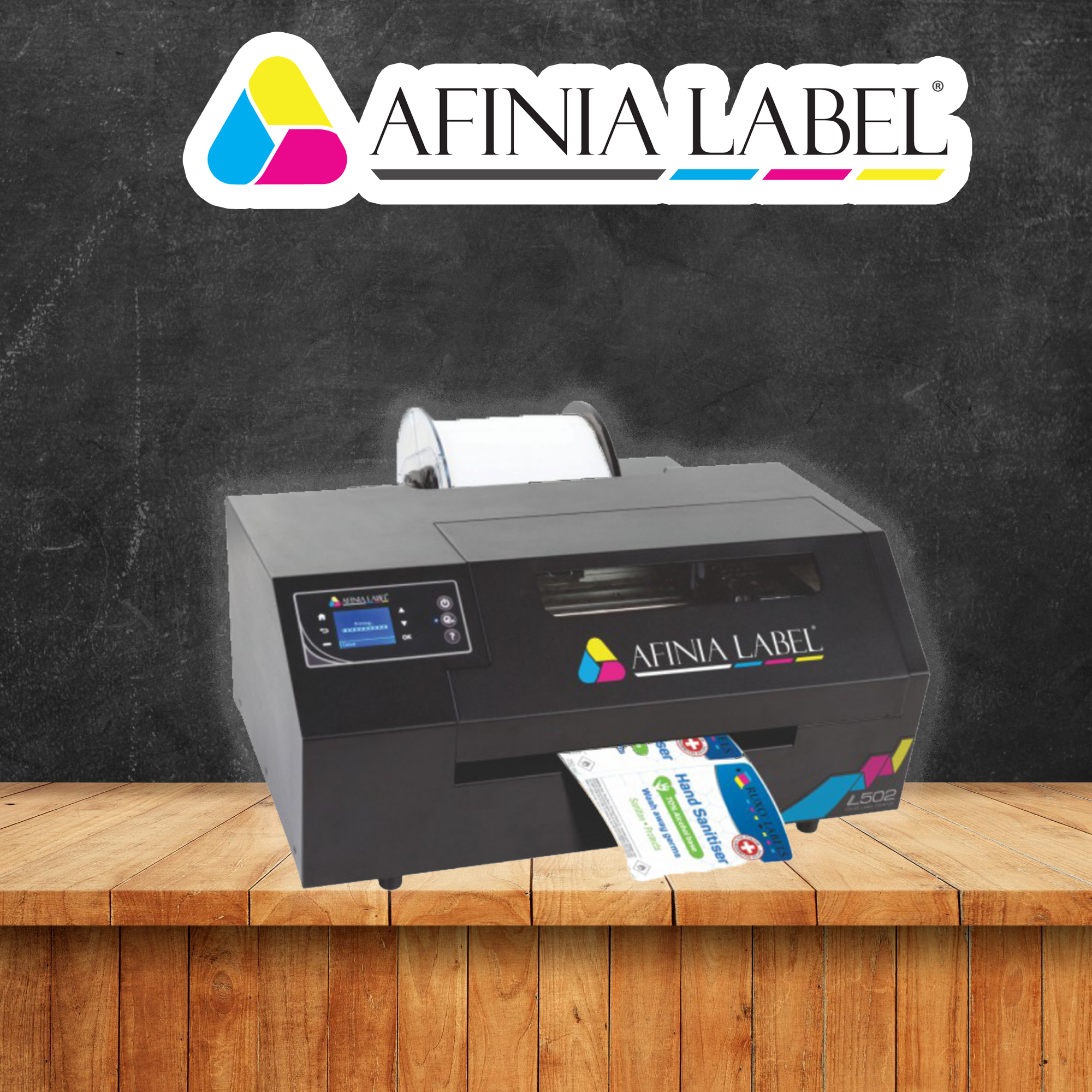

Afinia L502
Durable 8.5-inch colour label printer with dual-ink capability—ideal for flexible, on-demand production.
Colour and Versatility
Interchangeable pigment and dye inks
Select pigment CMYK inks for durable, GHS-compliant labels or dye CMYK inks for vibrant, high-impact retail labels.
Speed and Quality
Up to 5.2 inches per second
Produces detailed colour labels at resolutions of up to 4800 × 1200 dpi.
Media Handling
Flexible 25mm to 216mm media range
Supports media widths from 25mm to 216mm and label lengths of up to 1219mm across a wide range of substrates.
Industrial Construction
Rugged steel build
Built-in unwinder and cutter combine with industrial steel construction for reliable day-to-day production.
Best For
Durable industrial labels and high-quality retail packaging where application flexibility and professional output are required.
Speed
5.2 in/sec
Resolution
4800 × 1200 dpi
Maximum Width
216mm
High-Speed Industrial Production
03

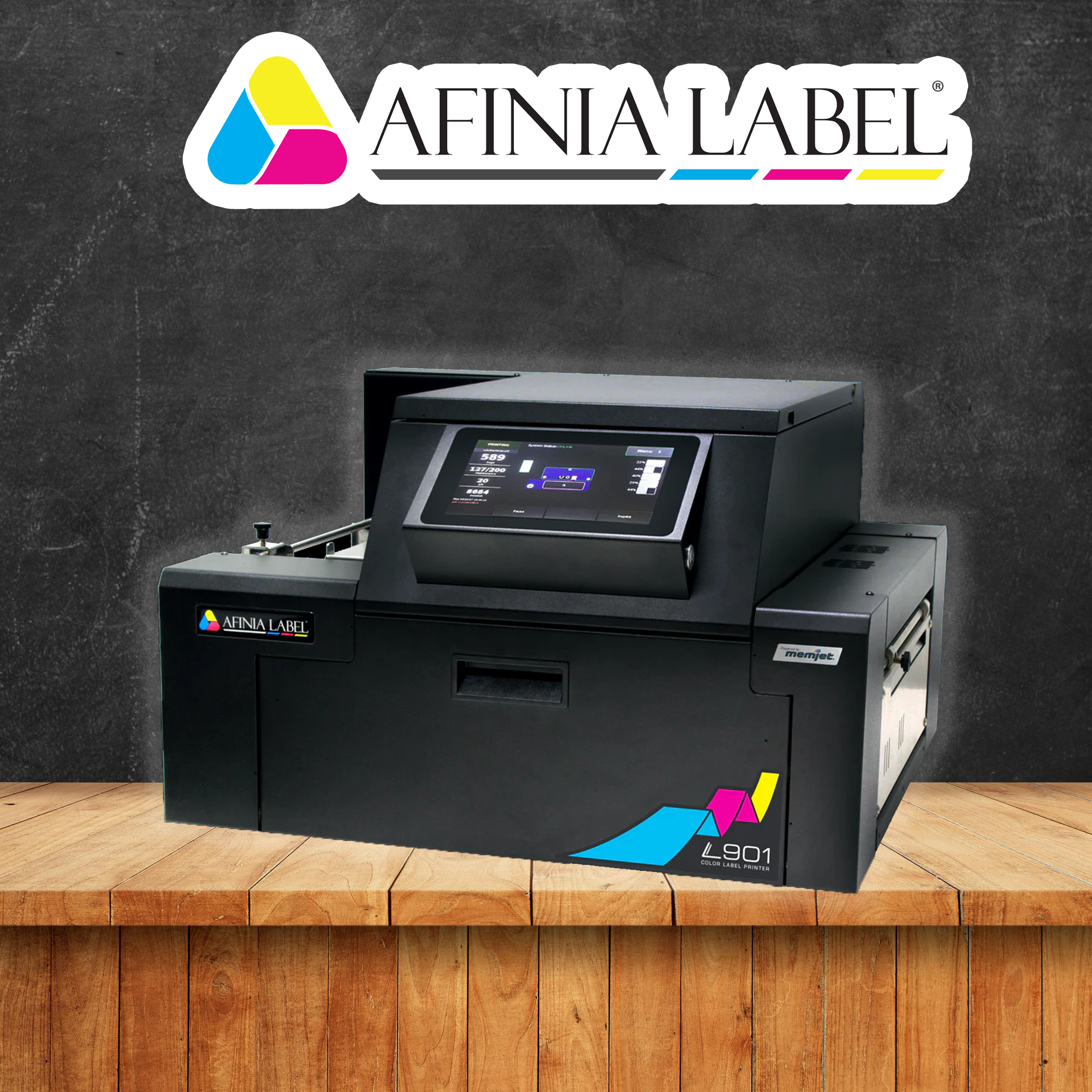

Afinia L901
Industrial-grade 8.5-inch colour label printer with blazing-fast, inline-ready performance.
Resolution and Printhead
Memjet VersaPass technology
Produces professional labels at resolutions of up to 1600 × 1600 dpi using a high-performance Memjet VersaPass printhead.
High-Speed Printing
6 to 12 inches per second
Fast output supports high-volume roll-to-roll and inline production workflows.
Media Capacity
Wide roll compatibility
Supports roll widths from 2 inches to 8.5 inches, roll diameters up to 10 inches and media thicknesses from 0.005 to 0.01 inches.
High-Capacity Ink System
Five 250mL CMYKK cartridges
The 1.25-litre installed dye ink system supports lower-cost, high-volume colour label production.
Best For
Manufacturing, packaging and pharmaceutical operations requiring speed, professional quality and efficient inline production.
Speed
Up to 12 in/sec
Resolution
1600 × 1600 dpi
Maximum Width
216mm
Ultra-High-Volume Production
04

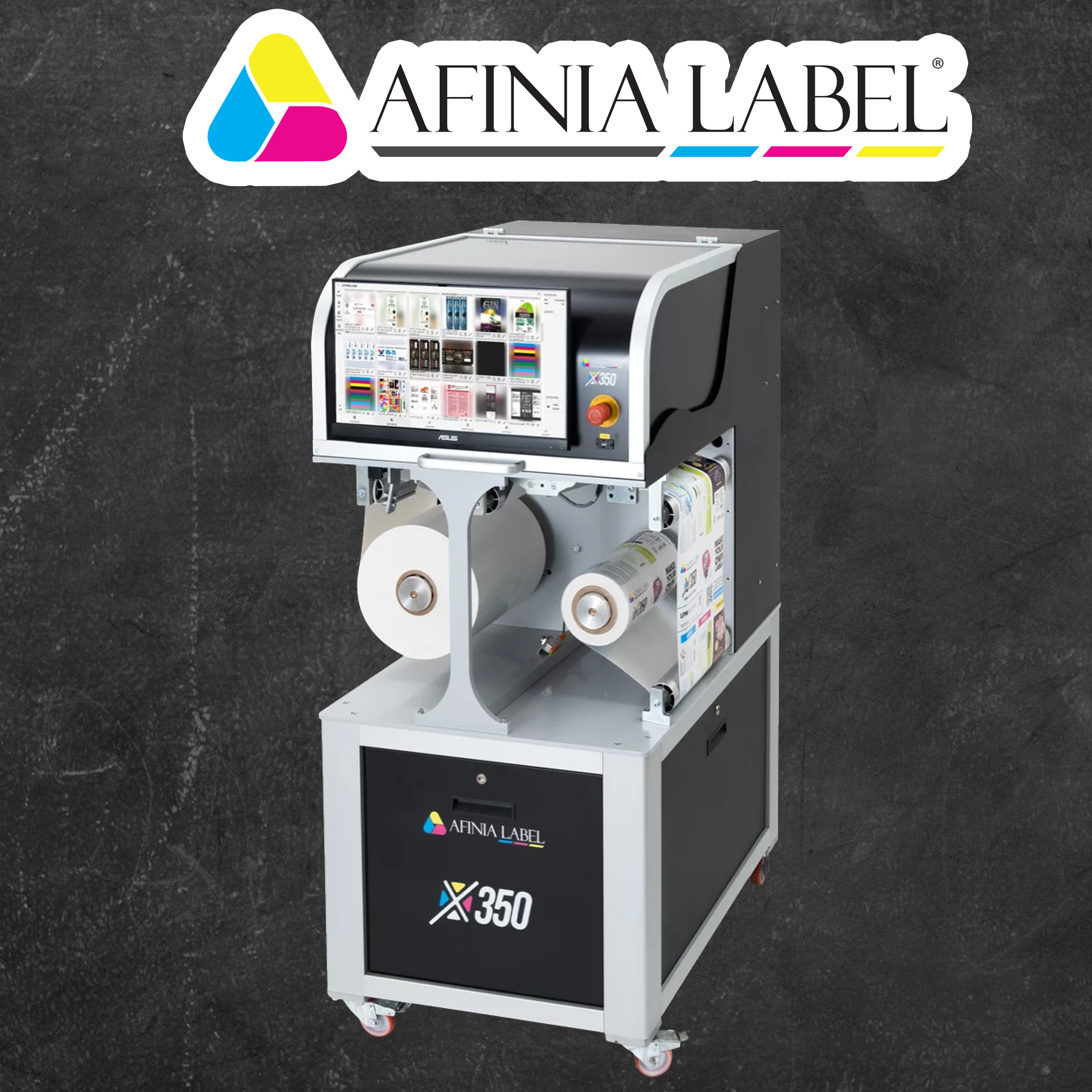

Afinia X350
Industrial 12.8-inch roll-to-roll pigment label press—built for ultra-high-volume and inline production.
Resolution and Printhead
Dual-nozzle redundancy
Produces consistent output at resolutions of up to 1600 × 1600 dpi using advanced dual-nozzle redundancy.
Ultra-High-Speed Printing
Up to 45 metres per minute
High-speed output supports large production runs, automated production lines and flexible packaging.
Media Capacity
Up to 13.75 inches wide
Supports media thicknesses from 0.05mm to 0.35mm for wide-format labels and packaging films.
Industrial Pigment Ink
2-litre CMYK ink tanks
Industrial aqueous pigment inks are BS 5609 certified and suitable for indirect food-contact applications.
Build and Interface
Compact steel production press
Features an enclosed steel design, low-noise compressor and a 21-inch touchscreen with cloud-enabled RIP control.
Best For
High-output label and flexible-packaging production where speed, durability, media width and precision are essential.
Speed
45m/min
Resolution
1600 × 1600 dpi
Maximum Width
324.4mm
Product Comparison
05
Compare the Afinia Range
Review the main differences in speed, print width, ink technology and production suitability.
| Feature | Afinia L502 | Afinia L901 | Afinia X350 |
|---|---|---|---|
| Production Level | Flexible / Mid-Volume | Industrial / High-Volume | Ultra-High-Volume |
| Maximum Print Width | 216mm | 216mm | 324.4mm |
| Maximum Speed | 5.2 inches per second | 12 inches per second | 45 metres per minute |
| Maximum Resolution | 4800 × 1200 dpi | 1600 × 1600 dpi | 1600 × 1600 dpi |
| Ink Technology | Pigment or dye CMYK | Dye CMYKK | Aqueous pigment CMYK |
| Media Handling | 25mm–216mm wide | 2″–8.5″ roll width | Up to 13.75″ media width |
| Primary Workflow | On-demand label printing | Roll-to-roll and inline | Industrial roll-to-roll |
| Best Application | Retail and durable labels | High-volume industrial labels | Labels and flexible packaging |
| View Product | View L502 → | View L901 → | View X350 → |
Product Selection Guide
06
Which Afinia Printer Should You Choose?
Match the printer to your required flexibility, production speed and output volume.
Choose the L502
You need flexibility between durable pigment labels and vibrant dye-based retail labels.
View L502 →Choose the L901
You require fast industrial label printing, roll-to-roll production or inline equipment integration.
View L901 →Choose the X350
You need wide-format, ultra-high-volume printing for durable labels or flexible packaging.
View X350 →
Need Help Selecting an Afinia Printer?
Let us match the right printer to your workflow
Speak to RUXO Labels about print volume, media width, label durability, inline finishing, flexible packaging and the best Afinia solution for your business.
01
Review your print volume
02
Confirm label requirements
03
Select the right Afinia model
