Powered by Memjet
Industrial design, professional image quality and high production speeds combine with on-the-fly printhead servicing for long roll-to-roll jobs and inline production.
Designed for long production runs, roll-to-roll printing and professional inline label applications.

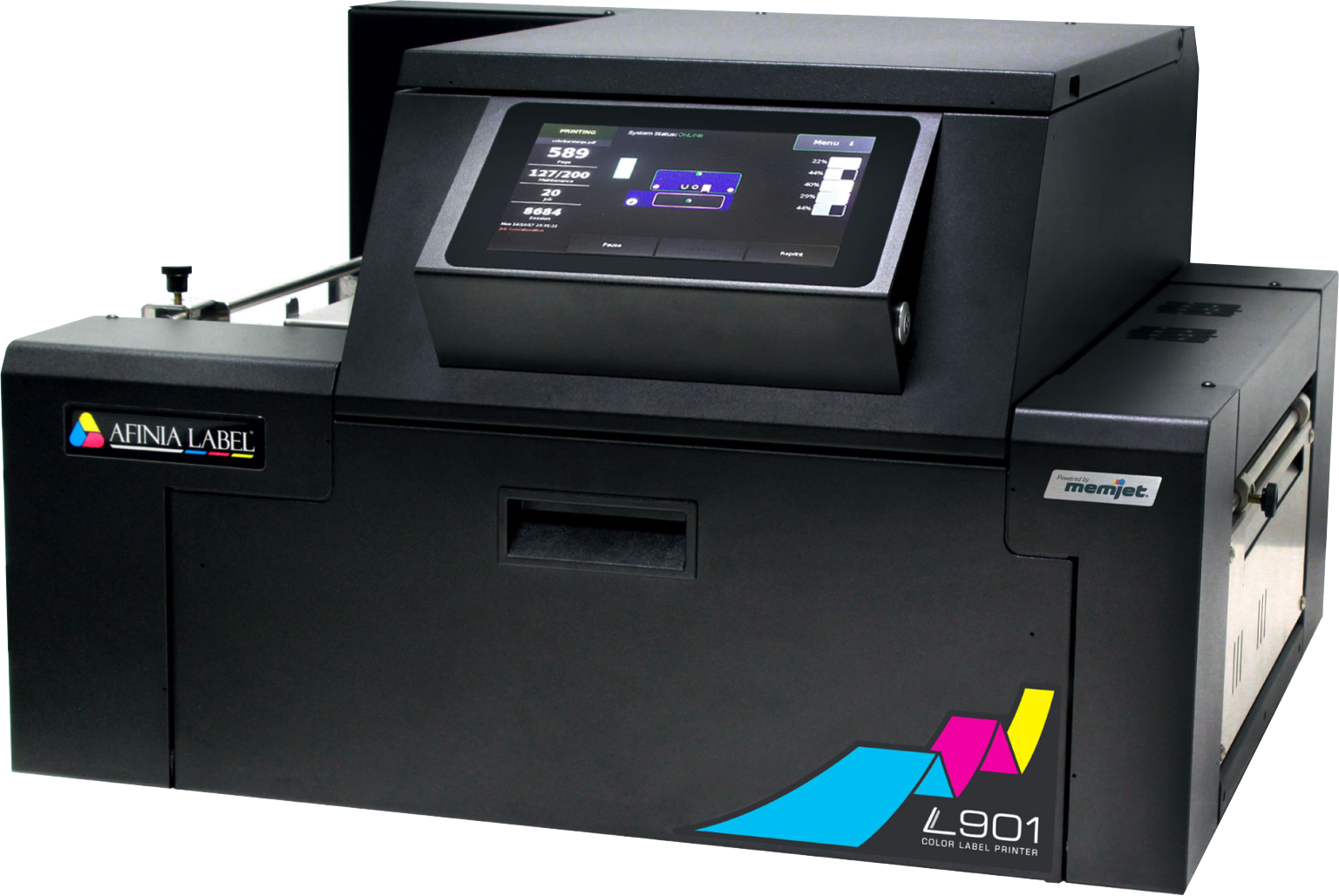

The L901 combines industrial design, exceptional image quality and high production speeds with the ability to service and maintain the printhead on the fly.
This makes the L901 suitable for long roll-to-roll print jobs and inline integration with label finishers, applicators, dispensers and other production equipment.
The printer is powerful in both standalone roll-to-roll configurations and advanced inline label-production environments.
Industrial capabilities for high-volume roll-to-roll production and integrated label workflows.
Operate as a continuous roll-to-roll printer or integrate the L901 into a larger production line.
Connect dispensers, applicators, finishing systems and high-volume digital press configurations.
Maintain printhead performance during extended production and reduce workflow interruptions.
A stationary printhead supports output speeds of up to 18 metres per minute.
Produce detailed graphics, small text and professional product labels at up to 1600 × 1600 dpi.
High-volume ink capacity and efficient production help support a competitive cost per printed label.

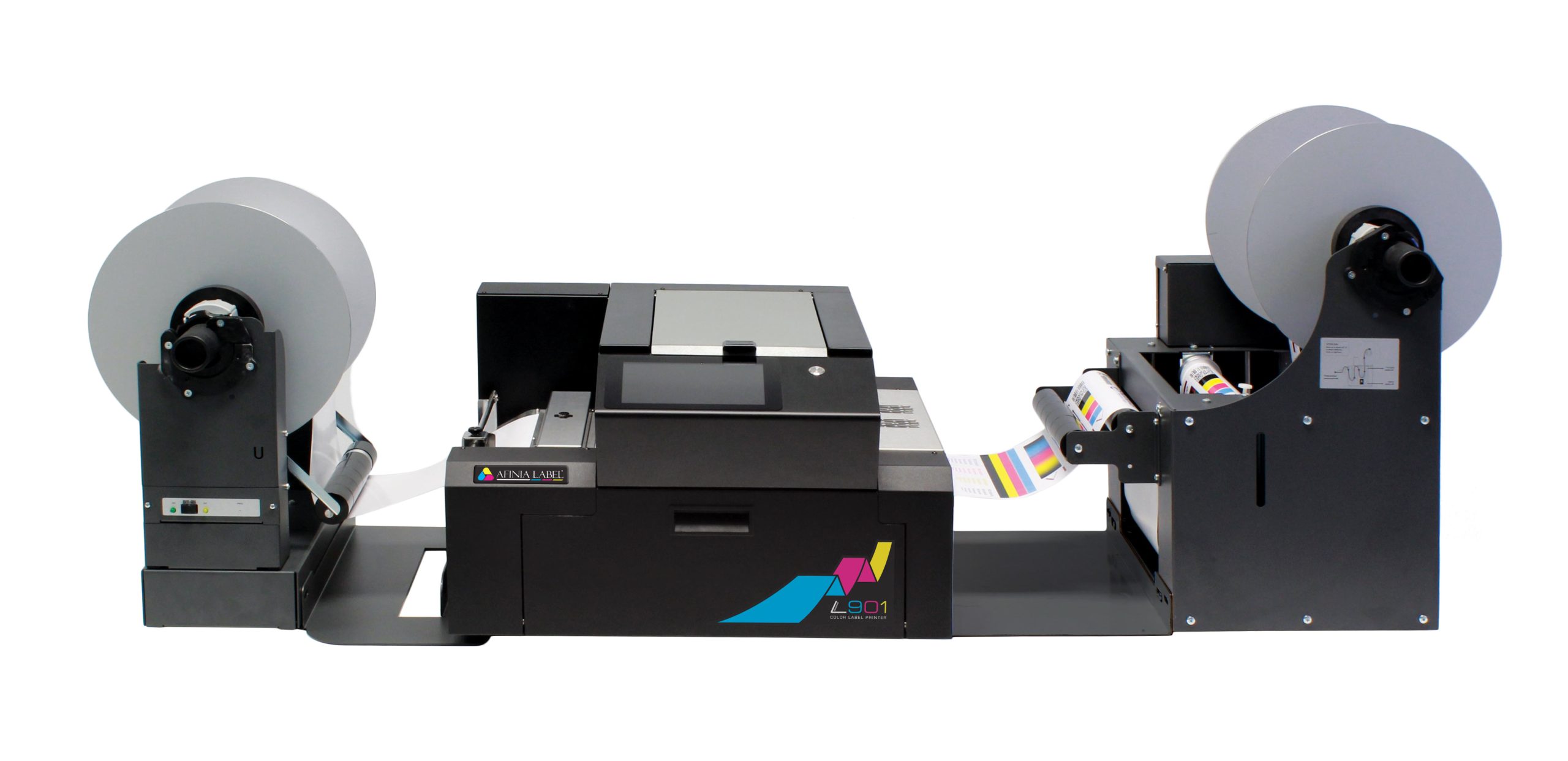

Pair the L901 with the XL unwinder and rewinder for continuous high-volume label production.
The XL unwinder and rewinder system pairs with the L901 to support continuous roll-to-roll label production.
The system can handle rolls up to 12 inches in outside diameter, allowing longer production runs with fewer roll changes.
Larger media rolls can also reduce media handling and help lower media costs during high-volume production.
Integrate the L901 with finishing, dispensing and application equipment for automated label production.
Feed blank media into the production line.
Produce high-resolution full-colour labels.
Cut, laminate or finish printed labels.
Apply labels or rewind the finished media.
Memjet VersaPass printhead technology allows on-the-fly maintenance, making the L901 suited to continuous inline production.
The printer can be integrated with dispensers, applicators, label finishers and high-volume digital label press configurations.
A stationary full-width printhead delivers high-speed, high-resolution output across the complete print width.
The L901 uses Memjet Waterfall Printhead Technology with 11 integrated circuit chips and a total of 70,400 nozzles.
Each integrated circuit chip contains 6,400 nozzles, creating a full-width stationary printhead.
Because the printhead remains stationary while media moves underneath it, the printer can produce labels at high speed while maintaining professional resolution.
Fast throughput and professional image quality for demanding continuous and inline production.
The L901 is designed for medium- to high-volume production where speed, print quality and integration capability are essential.
Explore the L901’s industrial printing capabilities and professional production workflow.
View the L901 printer, its high-speed Memjet technology and its suitability for roll-to-roll and inline label applications.
Detailed printer, ink, resolution, speed and media information for production planning.
| Specification | Afinia L901 Details |
|---|---|
| Print Method | Memjet Waterfall Printhead Technology® with 11 integrated circuit chips and 70,400 nozzles. |
| Integrated Circuit Chips | 11 IC chips with 6,400 nozzles per chip. |
| Total Nozzles | 70,400 print nozzles. |
| Inks | Dye-based CMYKK ink configuration. |
| Cartridge Capacity | Five 250mL cartridges, providing 1.25 litres of total installed ink. |
| Ink Durability | Improved water- and UV-resistant dye-based ink formula. |
| Maximum Resolution | 1600 × 1600 dpi. |
| High-Speed Resolution | 1600 × 800 dpi. |
| Print Speed | 6 inches or 152mm per second at the higher resolution setting. |
| Maximum Print Speed | 12 inches or 305mm per second, approximately 18 metres per minute. |
| Maximum Print Width | 8.5 inches or 216mm. |
| Cutter / Sheeter | Powered cutter and sheeter. |
| Recommended Volume | Approximately 10,000 to 100,000+ labels. |
| Typical Applications | Roll-to-roll printing, inline production, label finishing, dispensing and label application. |
View the official brochure for additional product and technical information.
Speak to RUXO Labels about production volume, roll size, label finishing, application equipment and inline integration.
