Automatic Loading
The lifting platform and ramp-style feeder present sheets to the cutter in a stable, repeatable position.
GEMINI – Label Finishing System for Sheets
Digital Sheet Finishing

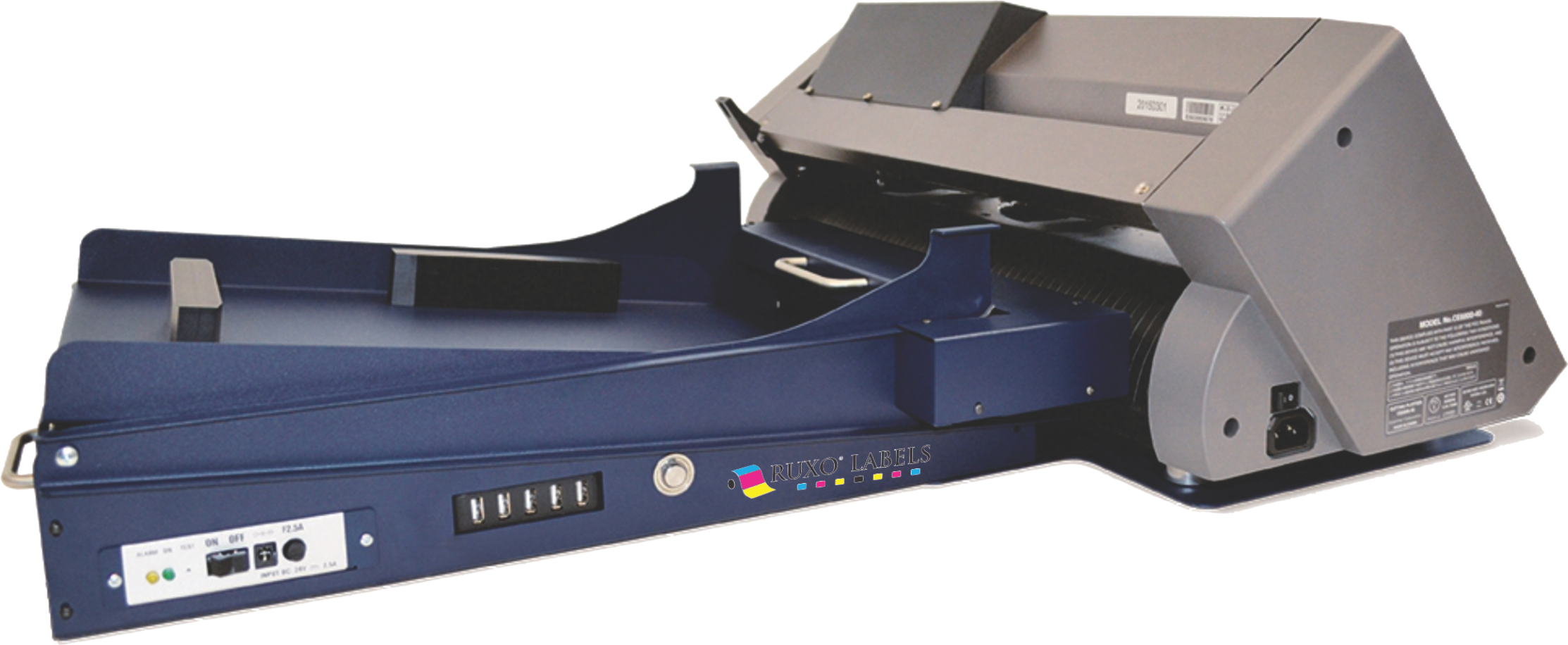

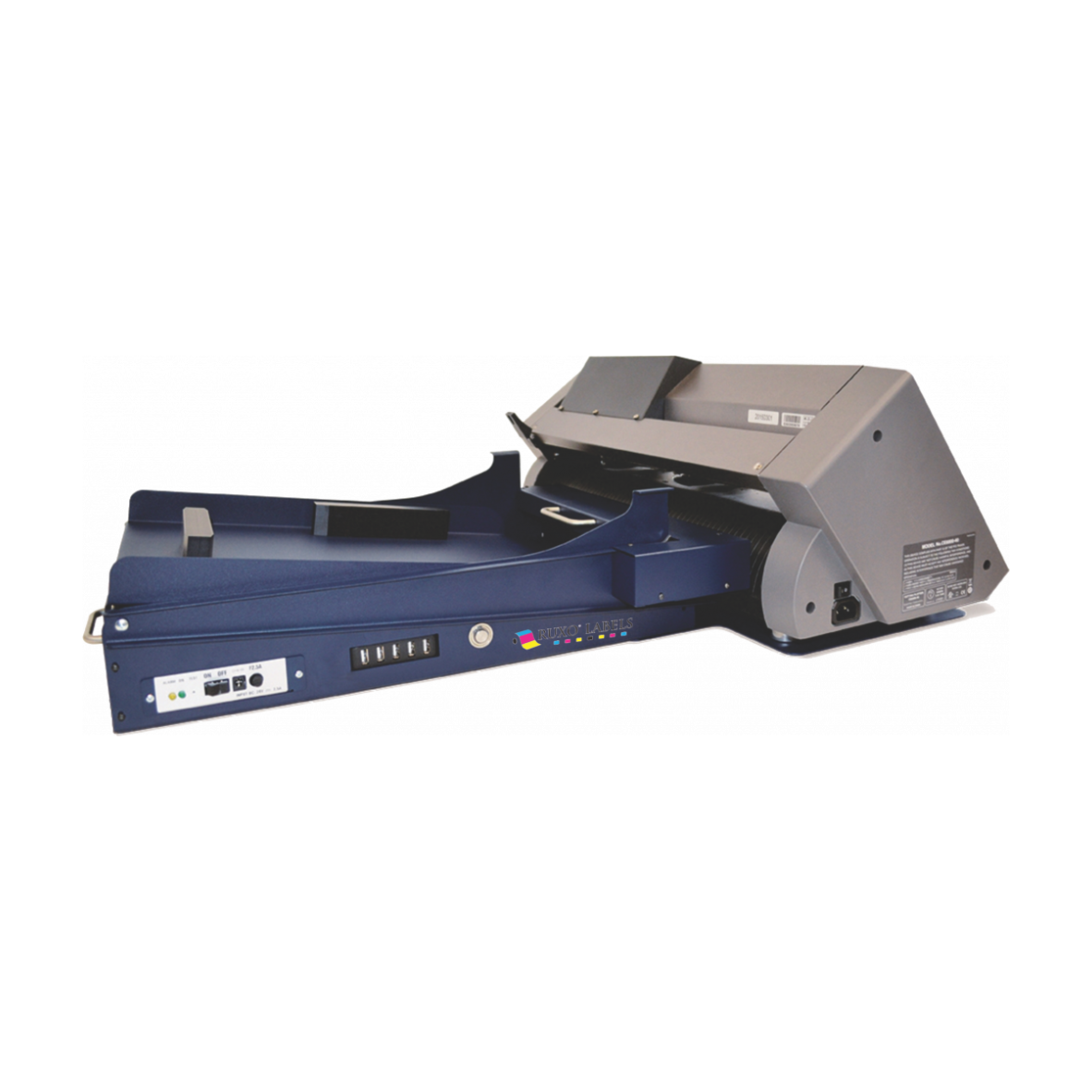

Gemini Automatic Sheet-Fed Label & Packaging Cutter
A compact, intelligent digital finishing system for precise kiss cutting, die cutting, perforation, creasing and marking across short-run labels, cards and small-format packaging.
Automatic Sheet Feeding
0.3mm Cut Precision
Up to 150 Sheets
210–350mmSupported media width
279–500mmSupported media length
200–350gsmCardboard cutting range
Smart Digital Finishing
01
Finish Short Runs Without Expensive Cutting Dies
Gemini combines automatic sheet feeding, optical registration and precision cutting in one compact desktop production system.
The Gemini label cutting system uses a fully automatic lifting and feeding platform to process sheets quickly and accurately, with minimal operator intervention.
It is designed for short-run, personalised and customised printing and packaging work where flexibility, precision and cost control are important. The system can perform through cuts, half cuts, perforation, creasing and marking for a broad range of applications.
Precision0.3mm
Accurate contour cutting after automatic mark detection.
Capacity±150
Average sheets per unattended feeder run.
FormatsA4–SRA3+
Supports standard and oversized production sheets.
Compact desktop productionAutomatic feeding, cutting and collection
Automatic Sheet Handling
02
Load, Register, Cut and Collect
A newly designed ramp-style tray and wheel system moves each sheet through the cutter without interrupting the job.
Mark Detection
The integrated sensor reads two or four registration marks within a fraction of a second.
Precision Cutting
Gemini software corrects linear and angular differences before sending the adjusted cut path.
Sheet Collection
Finished sheets are dispensed neatly into the catch tray while the next sheet enters the plotter.
Four Finishing Functions
03
One System, Multiple Cutting Methods
Switch between label finishing, shaped cards, tags and lightweight packaging without ordering conventional cutting dies.
Kiss Cutting
Half cuts through the face material while leaving the backing liner intact, ideal for peelable labels and stickers.
Standard blade positionDie Cutting
Heavy through cuts create separated shapes, tags, cards, inserts and small packaging components.
Second blade positionPerforation Cutting
Small controlled cut segments form tear lines for coupons, tickets, tags and detachable sections.
Programmable dotted cutsCreasing
Accurate crease lines prepare printed board for folding into cards, sleeves and small boxes.
Packaging preparationTwo Cutting Positions
Optimised for labels and through-cut applications
Flexible Production
04
Applications for Labels, Cards and Packaging
Gemini gives print providers the flexibility to produce customised shapes and short runs economically.
Labels & Stickers
Contour-cut product labels, promotional stickers and short personalised runs.
Business Cards
Standard cards, shaped cards, rounded corners and creative custom profiles.
Small Boxes
Cut and crease lightweight packaging, sleeves, sample packs and prototypes.
Tags & Inserts
Produce hang tags, swing tags, product inserts, tickets and promotional pieces.
Supported Sheet Formats
A4A3SA3SRA3LetterTabloidTabloid Extra
Built for Productive Short Runs
05
Key Gemini Features
A practical combination of trusted cutting hardware, automatic feeding and dedicated workflow software.
Graphtec CE7000 Plotter
Uses an industry-recognised Graphtec cutting platform for reliable and accurate finishing.
Compact Desktop Design
A space-efficient solution for smaller print rooms, studios and production environments.
Automatic Ramp Feeder
Enables unattended sheet feeding and continuous job processing.
Dedicated Cutting Manager
Proprietary software controls sheet loading, mark reading, correction and cut execution.
Up to 150 Sheets
Average automatic feeder capacity supports productive operator-free runs.
Multi-Function Finishing
Die cut, kiss cut, perforate and crease with one adaptable finishing system.
Technical Information
06
Gemini Specifications
Core operating specifications for media compatibility, capacity, software and registration.
| Automatic Sheet Capacity | Average 150 sheets with automatic feeder |
|---|---|
| Media Width | 210–350mm |
| Media Length | 279–500mm |
| Media Weight | Cardboard from 200–350gsm |
| Supported Formats | A4, A3, SA3, SRA3, Letter, Tabloid and Tabloid Extra |
| Cutting Functions | Die cut, kiss cut, perforation cut, creasing and marking |
| Cut Precision | Up to 0.3mm |
| Interface & Software | Cutting Manager Software; Windows XP and later |
| Registration Marks | Two or four registration marks |
| Plotter Platform | Graphtec CE7000 |
Media Range210 × 279mm minimum350 × 500mm maximum
Cutting Manager Software
07
Automatic Registration and Cut Correction
The sensor reader and Gemini software work together to align every sheet before cutting begins.
01
Detect Registration Marks
The optical sensor detects the printed marks and compares their position with the original digital cut file.
02
Measure Position Differences
The software identifies linear movement, sheet rotation and angular differences caused during printing or feeding.
03
Correct the Cut Path
Gemini automatically adjusts the cut lines before the plotter begins, supporting accurate repeatable finishing.
Registration MethodTwo or four printed marks
Choose the registration setup appropriate for the artwork, sheet and required finishing accuracy.
See Gemini in Production
08
Product Videos and Brochure Downloads
View the automatic finishing workflow and download detailed product literature.
Product Demonstration
Gemini Automatic Digital Finishing
Workflow Video
Automatic Feeding and Precision Cutting
Bring Digital Finishing In-House
Turn printed sheets into finished products on demand
Speak to RUXO Labels about your sheet sizes, media weights, label applications, packaging requirements and expected production volumes.
01Confirm media and sheet size
02Select cut and crease functions
03Plan your Gemini workflow
