Tabletop Digital Label Finishers

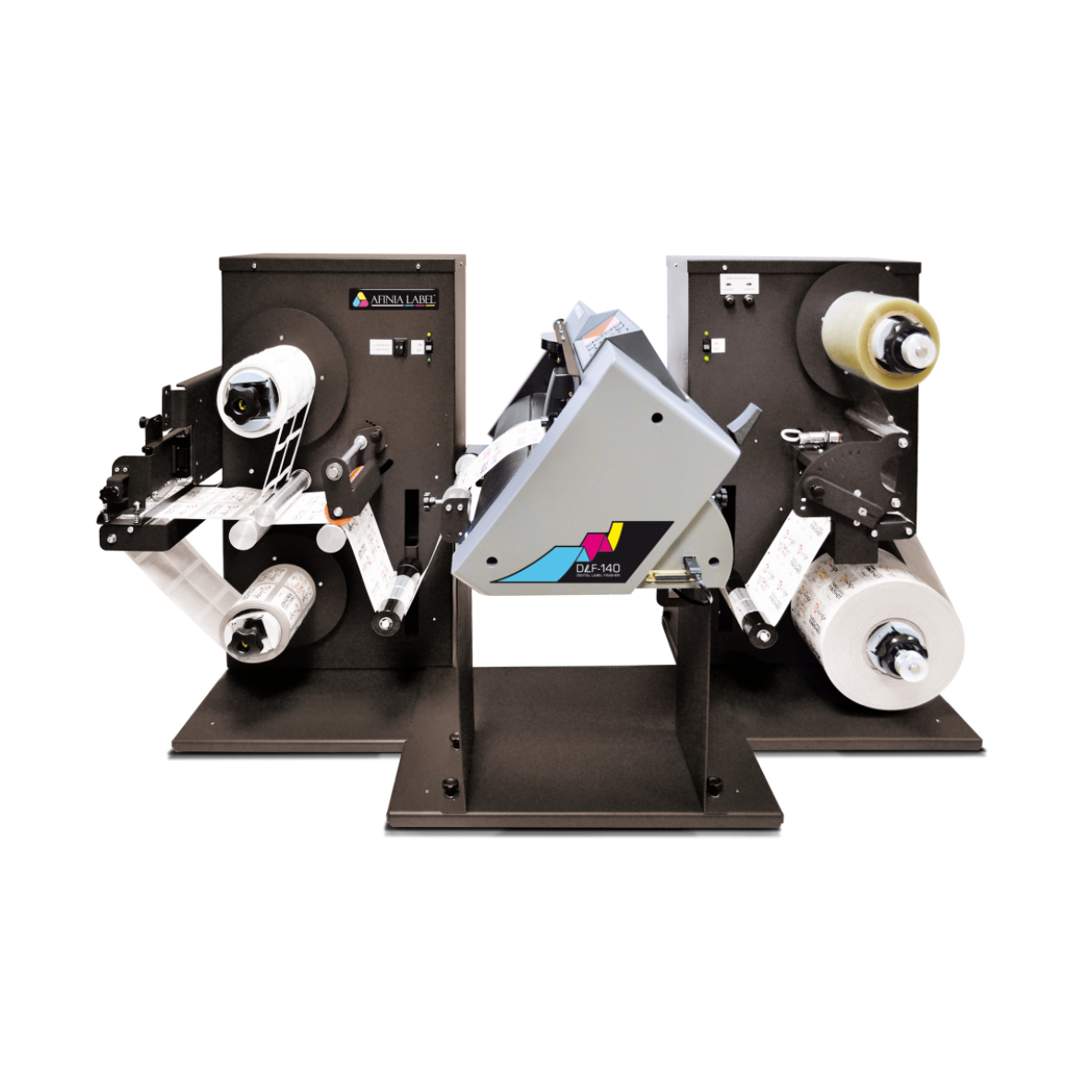

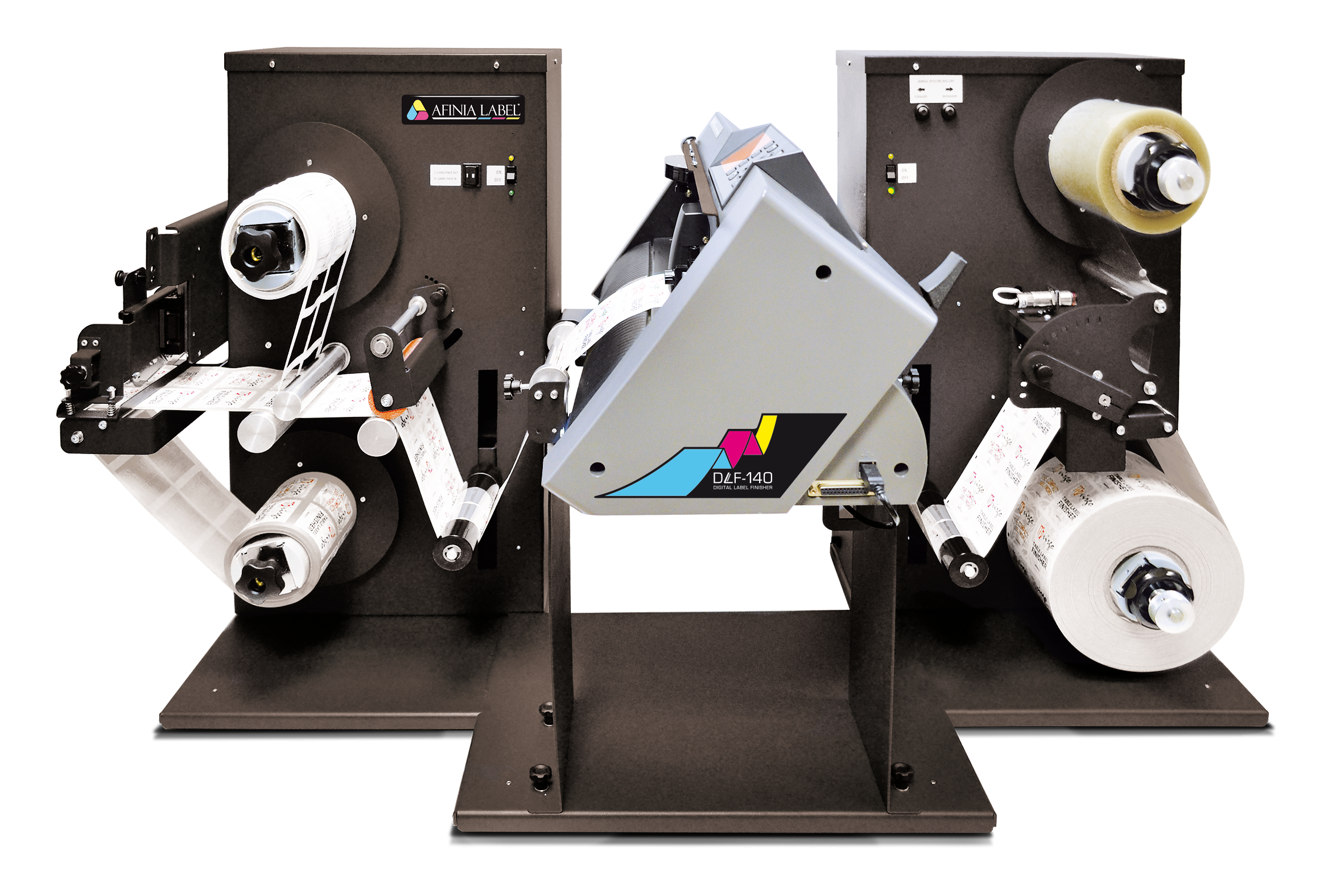

The DLF-140S (max 140mm width) is a small-footprint version of our full-size label finishers, designed for tabletop use.
Digitally Cut Any Label
Featuring ultra-precise cutting abilities, the DLF-140 easily produces beautiful full-bleed labels without a need for costly dies. A digital cut file guides the DLF-140’s plotter as it converts uncut, continuous-printed media to fully-finished labels.
Advanced Plotter Cutting Technology
All Afinia Label digital finishers have advanced plotter cutting technology. This allows you to cut different types of material and shapes, on the fly, without the additional cost of dies. They are also equipped with a camera-based black mark registration system for pinpoint accuracy and consistency. This provides cutting speed optimization without synchronization issues.
DLF-140 Specifications
| Input / Output Roll Diameter | 200mm (7.87”) |
| Minimum Web Width | 100mm (3.94”) |
| Maximum Web Width | 140mm (5.51”) |
| Maximum Cutting Width | 122mm (4.80”) |
| Minimum Slitting Width | 19mm (0.75”) |
| Minimum Label Length | 10mm (0.39”) |
| Maximum Label Length | 200mm (7.87”) |
| Lamination Module | YES |
| Number of Slitting Blades | up to 6 |
| Maximum Media Thickness | 0.25mm (10 mil) |
| Maximum Cutting Speed | 600mm/s (24 in/s) in all directions |
| Roll Core Size | 76mm (3”) |
| Agency Certifications | CE, FCC, RoHS |
| Warranty | One Year Parts and Labor. Usage Limitation may apply |
